PROJECTS

In the course of our 30 years of activity, we have designed, processed and managed over 250 projects.



With the following gallery we give an overview of the range of works. We have grouped the projects for this purpose and selected a few - from our point of view particularly important - projects for each group. Many projects are described in summary, even if the individual projects are projects with several man-years of development work.



Flood forecast systems and operational systems

All our flood forecast systems and operational systems are individual software, which were designed and parameterized for a special task.

All flood forecast systems which were developed with our help or by us personally are a combination of meteorological forecasts, hydrological models and – at least for big rivers like Danube, Inn, Salzach, or Lech – a hydrodynamic models.

All systems were developed in teams, which involved scientists and software experts. The scientific process was often done by universities or other scientific facilities.

Besides the technical implementation, support in business management and structuring is a core competence of GR Consult. Thus, we have collaborated in an EU project concernig the flood forecast system for the River March and we have been part of a consortium to develop a forecast system for the Salzach. In that consortium we were handling the commercial management.

1D and 2D simulations for analyses and planning

We mainly use hydrodynamic models to analyze big river systems und complex issues. Our projects cover the entire spectrum of 1D and 2D model usage in hydrology and water resource management. Issues, that need 3D models demand cooperation with experienced partners, with whom we have been working for years.

As part of our experience, we would like to highlight the following projects as examples:

2D model of the Austrian Danube

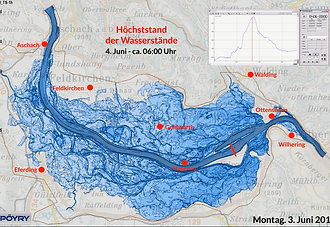

The 2D model of the Austrian model was developed over the course of 10 years by combining different smaller models. The model was used for flood calculations, analyses and plans as well as for the reconstruction of the flood in June 2013. While working on this reconstruction, the model was an important foundation for a movie, which visualized the backgrounds and processes of the flood in the Eferdinger Becken.

1D model of the Austrian Drau

From 2001 to 2005 SCIETEC was working on an assignment from Austria Hydro Power (AHP) to model all HPPs along the Austrian Drau. Beside the hydraulic aspects, the complex HPP controlling and the sediment transport were of particular interest.

Model for a training simulator in Birsfelden

Trainings are an important tool in all fields, where critical situations have to be mastered as they provide a valuable opportunity to learn and prepare for any possible scenario.

In the field of water resource management, training simulators can be seen as trailblazers, even though they provide the possibility to gain real experience while facing no risk at all.

The development of the training simulator created the possibility to train staff regularly and systematically to avoid catastrophes when critical situations arise.

Please reload

Reconstruction of floods - analyzes and reports

After the catastrophic floods of 2002 and 2013 on the Danube and its tributaries, we were commissioned with the reconstruction of the events and subsequently with comprehensive expert reports. The simulation of the processes in general and the influence of the power plants were in the foreground.



We carried out analyzes and reports on behalf of ministries, state governments, power plant operators and courts. We counter the fact that apparently competing objectives can arise from this with clarity, transparency and a scientifically based, testable methodology.



The findings from the reconstruction of the events were conveyed by us not only in comprehensive reports, but also in specialist lectures to authorities and experts, in public assemblies and - at the event in 2013 - in a specific video.

Control, automation, simulation and training

The modeling and analysis of the influence of power plants and the interaction between hydraulics and control are an essential aspect in many of our simulations.

We can differentiate between four subject areas in our projects:

In Busy Engineering Bureau Two Senior Engineers Discussing Technical Issues over Personal

Hydrodynamic analyzes

We use hydrodynamic analyzes to analyze the effects of different control strategies, weir operating regulations or e.g. supra-regional approaches for the management of polders during floods. The central results are dependencies, parameters and bases that are used for operational and technical decisions.

Simatic Controller.jpg

Test systems for control systems in water management

With test systems we usually provide a digital image of a river or a water system that includes all relevant hydrodynamic relationships.

The systems are equipped with standard interfaces, via which connected systems - e.g. a control module - can be integrated. Our customers use such test systems for the design and acceptance of control systems.

Main - KW Grossmannsdorf.png

Development of control strategies and systems

As early as 2004, we integrated a control system into the online model for the Lech, which provided optimized suggestions for the management of the four largest reservoirs.

In cooperation with the ETH Zurich, we have developed an MPC system for 34 power plants on the Main and implemented it as a pilot system, which, as a superordinate control for all power plants, determined the flow so that the setpoints for the OW level were adhered to as best as possible without fluctuations generate in the runoff.

DINO Neckar.jpg

Implementation of analysis and training systems

With analysis and training systems, relationships can be recognized and the measures to be taken can be trained without the need for specific model knowledge.

We develop our systems in close cooperation with our customers, whereby different concepts are used for the input systems: A copy of the SCADA system is used when practicing on the real interface is important. Compressed input masks, on the other hand, can focus on seeing the hydrodynamic relationships.
